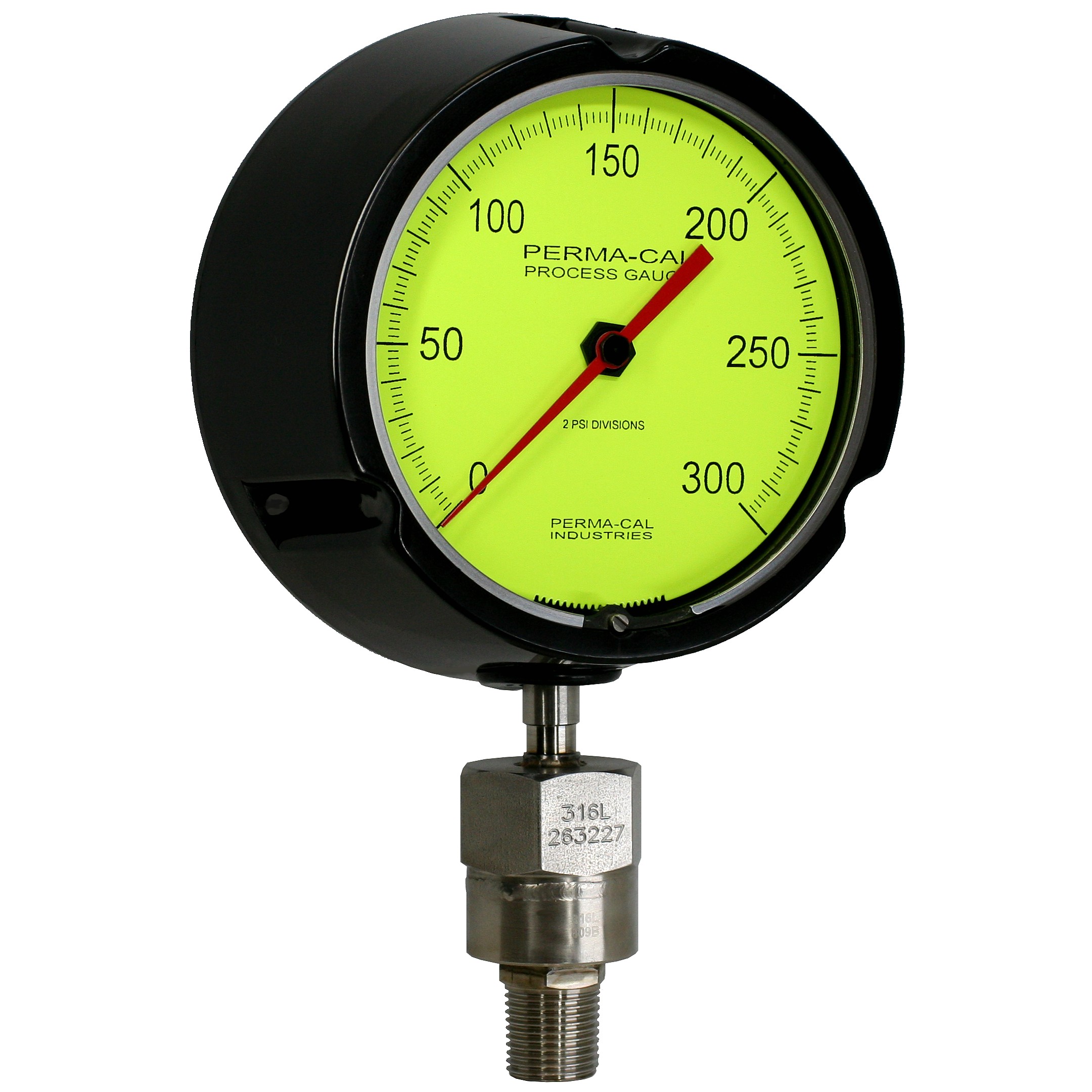

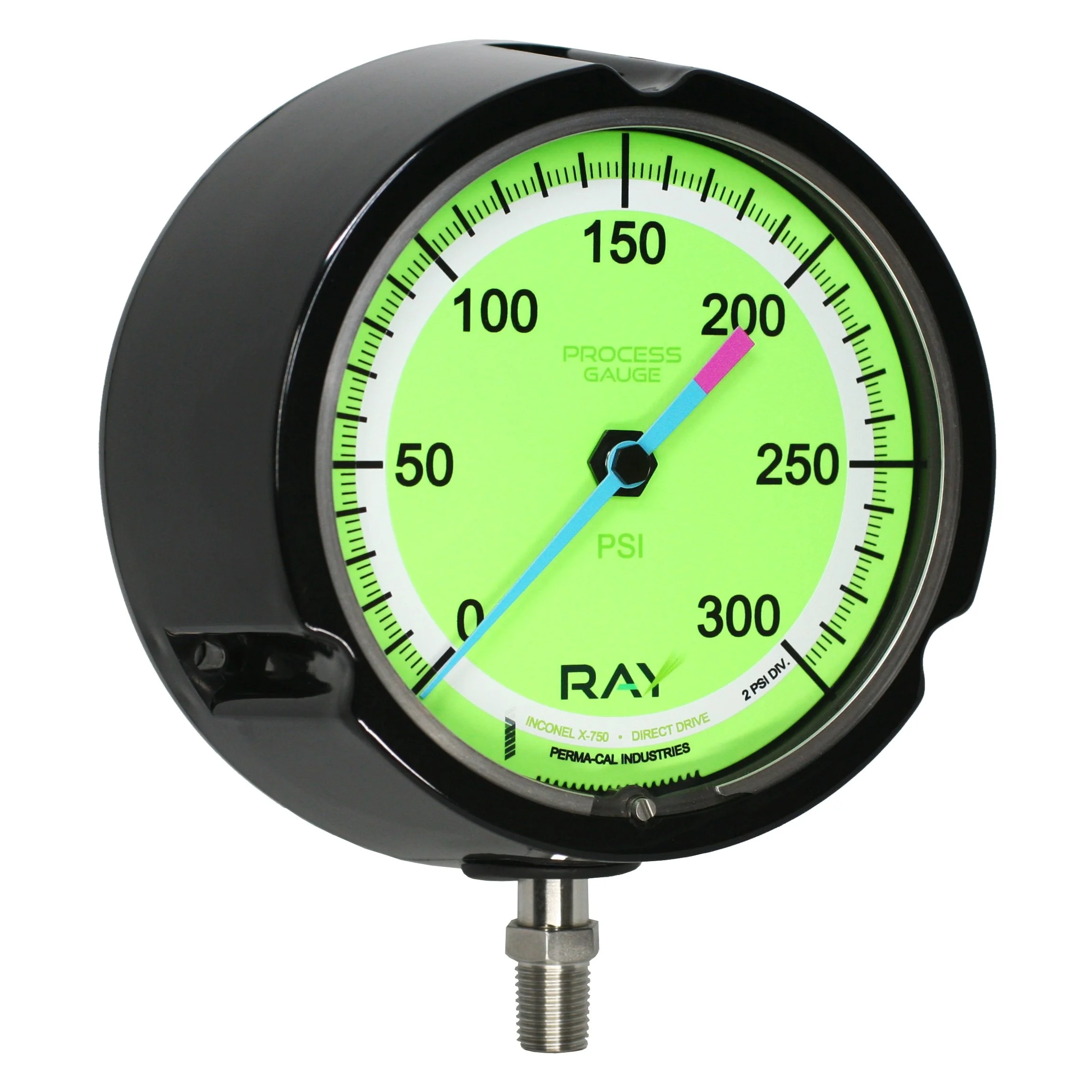

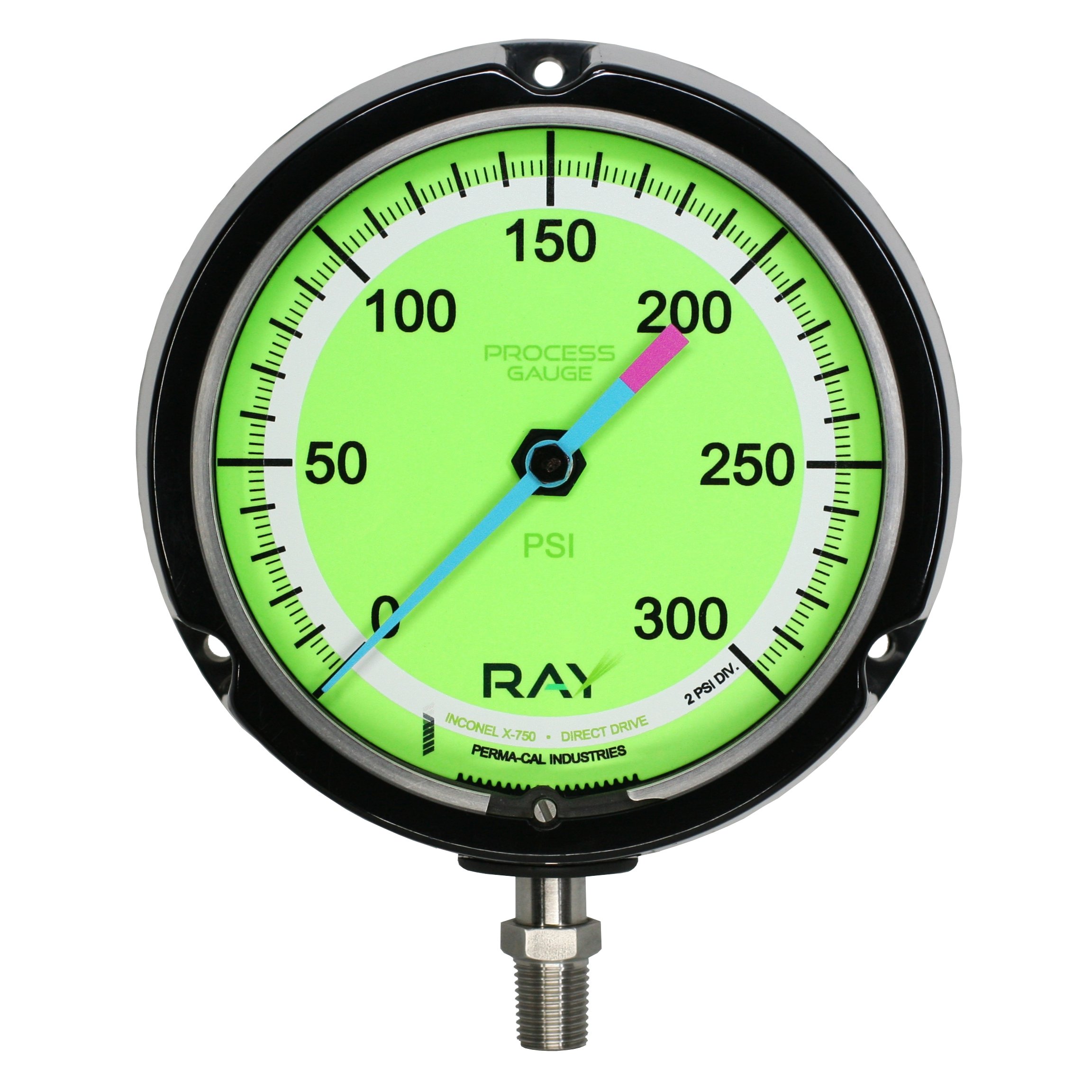

Ray Series Process Gauges

IMPROVED VISIBILITY IN LOW LIGHT AREAS



AEROSPACE QUALITY | MILITARY TRUSTED

Direct Drive is demanded on critical applications.

The same military grade Direct Drive technology used in our Aeropsace and Military designs, is used in our industrial gauges for commercial applications. Ideal for land, air, sea, and space.

The U.S. Military recognizes the durability advantages Direct Drive provides and requires it on their most demanding applications.

LIFETIME LIMITED WARRANTY

Lifetime warranty that the Bourdon tube will not malfunction due to wear.

1 year from delivery or 18 months from date of manufacture against defects in materials and workmanship.

Advantages

IMPROVED VISIBILITY IN LOW LIGHT

Neon Dial + Red Pointer = High Contrast

High contrast features improve readability in any environment, especially those in low light areas.

ONE MOVING PART

Unmatched vibration, pulsation and shock performance.

Helical Bourdon Tube = Gearless, Direct Drive = DURABILITY

No linkages, springs, gears, or liquid fill to wear, break or leak. Unique, internal pointer dampening reduces pointer flutter without the negative consequences of liquid fill.

OOPS! PROOF

Proof Pressure (over-pressure) of 150% F.S. exceeds industry standards.

Survives the day to day beatings of an industrial environment in addition to the accidental drop, channel lock tap or the surprise pothole. Additionally, where vacuum can sometimes damage a C-tube gauge, Direct Drive is unaffected.

TEMPERATURE HERO

Trusted in extremes from -65°F up to 600°F media. Accuracy is 25% less affected by temperature fluctuations.

Inconel Elastic Element = Low Coefficient of Thermal Expansion

Inconel in combination with a low internal volume means that the impact of temperature on accuracy is significantly less than competitors using a Stainless Steel Bourdon Tube. High-Temp solutions available which bring operating temperatures up to 400°F Ambient / 600°F Media.

MINI-SEAL COMPATIBILITY

Requires 85% less fill fluid than the competition. Accuracy is 50% less affected by temperatures above 68°F (20°C)

Low volume design enables performance on mini diaphragm seals. This can provide significant performance and cost advantages vs. competitors.

USA PARTS, USA MADE, USA OWNED

Manufactured in Minden, NV using only American made parts. Manufacturing processes not completed in house are outsourced to support local small businesses.


Ray Series Process Gauge Specs



TYPICAL APPLICATIONS

Ideal for use in areas where improved visibility is required and a process gauge is being used, especially those experiencing vibration, pulsation and shock.

  • Industrial, Energy & Power Plants

  • Wastewater Treatment Facilities

  • Pump Applications

  • Welding Gas Filling Stations

  • Steam Pipes

  • Oil & Gas Pipelines

  • Chemical Plants

  • Manufacturing Facilities

  • Refineries, and more...

ACCURACY

  • ±0.5% of F.S. (Grade 2A)

  • ±0.5% F.S. at M.S. / ±1.0% F.S.

For details see accuracy specs page

RANGE AVAILABILITY

  • Vacuum - 15,000 psi

  • Units: psi only

  • Types: Single Scale, Vacuum and Compound

Customization available (range, units, logo, etc.)

See dial availability chart for list of ranges

OPERATING TEMPERATURE

Media Temperature:

  • ABS: -65°F to 250°F

  • GFN and Metal: -65°F to 600°F

Ambient Temperature:

  • ABS: -65°F to 190°F

  • GFN and Metal: -65°F to 400°F

CASE CONFIGURATIONS

Materials:

  • ABS (acrylonitrile butadiene styrene)

  • Aluminum

  • Stainless Steel

  • GFN (glass-filled nylon): High-Temp Yellow Turret

Sizes, Types and Colors:

  • 4.5" Dial Standard

  • Front Flange, No Flange, Rear Flange, Turret Style

  • Black, Blue, Green, Red, White, Yellow

Metal Case Finish: Powder Coated or Unpainted

Solid Front Case Design

Other options available (size, color, etc.) Contact sales.

QUALITY MATERIALS

Wetted Parts:

  • Inconel X-750

  • 300-series SS

  • Silver Braze (nickel braze available)

Connection Material:

Window Construction:

  • Acrylic

  • Tempered Glass (increases heat tolerance)

Dial Construction:

  • Stainless Steel Material , Powder Coated Finish

  • Neon Background, Black Markings, Red Pointer

OTHER SPECIFICATIONS

Burst Pressure: 500% F.S. pressure or 25,000 psi

Proof Pressure (over-pressure w/o calibration shift):

  • 150% of F.S. for gauges ≤ 5,000 psi or equivalent

  • 125% of F.S. for gauges > 5,000 psi or equivalent

Internal pointer dampening (reduces pointer flutter)
