Precision Test Gauges

RELIABLE ACCURACY ON CRITICAL APPLICATIONS

Advantages

ONE MOVING PART

Unmatched vibration, pulsation and shock performance.

Helical Bourdon Tube = Gearless, Direct Drive = DURABILITY

No linkages, springs, gears, or liquid fill to wear, break or leak. Unique, internal pointer dampening reduces pointer flutter without the negative consequences of liquid fill.

TRAVEL READY

Survives the day to day beatings of an industrial environment or a bumpy ride in the back of a pickup.

Don’t sweat the accidental drop or the surprise pothole. Direct Drive Design is inherently more durable in the areas of shock and vibration.

LIFETIME LIMITED WARRANTY

Lifetime warranty that the Bourdon tube will not malfunction due to wear.

1 year from delivery or 18 months from date of manufacture against defects in materials and workmanship.

TRUSTED ACCURACY

Accuracy is 25% less affected by temperature fluctuations. Trusted in extremes from -65° F up to 600° F media.

Inconel Elastic Element = Low Coefficient of Thermal Expansion

Inconel in combination with a low internal volume means that the impact of temperature on accuracy is significantly less than competitors using a Stainless Steel Bourdon Tube.

AEROSPACE QUALITY | MILITARY TRUSTED

Direct Drive is demanded on critical applications.

The same military grade Direct Drive technology used in our Aeropsace and Military designs, is used in our industrial gauges for commercial applications. Ideal for land, air, sea, and space.

The U.S. Military recognizes the durability advantages Direct Drive provides and requires it on their most demanding applications.

USA PARTS, USA MADE, USA OWNED

Manufactured in Minden, NV using only American made parts. Manufacturing processes not completed in house are outsourced to support local small businesses.

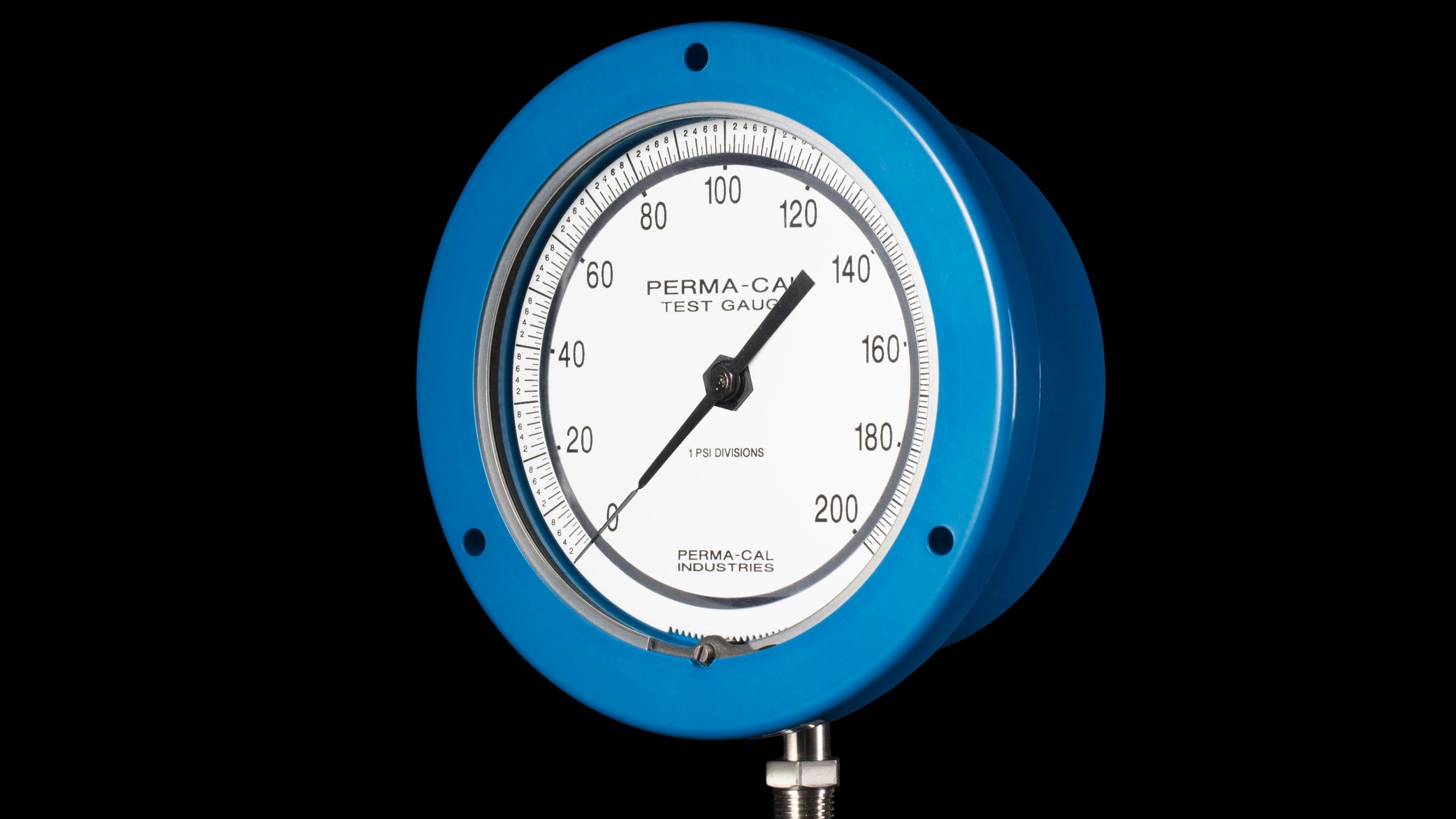

TEST GAUGES

COMPOUND TEST GAUGES

VACUUM TEST GAUGES

Knife-edged pointer for precision readings. Calibration certificate included.

Reads positive and negative pressures. Calibration certificate included.

Reads negative pressures. Calibration certificate included.


Test Gauge Specs



TYPICAL APPLICATIONS

Ideal for use on any application where accuracy and reliability are paramount.

  • Industrial, Energy & Power Plants

  • Mobile Testing Setups

  • Hydraulics Testing Facilities

  • Fluid Control Manufacturing Facilities

  • Welding Gas Filling Stations

  • Oil & Gas Pipelines

  • Chemical Plants

  • Refineries, and more...

ACCURACY

  • ±0.25% of F.S. (Grade 3A)

For details see accuracy specs page

RANGE AVAILABILITY

  • Vacuum - 15,000 psi (or equivalent)

  • Units: psi, bar, kPa, MPa, kg/cm², inHg, mmHg

  • Types: Single or Dual Scale, Vacuum and Compound

Customization available (range, units, logo, etc.)

See dial availability chart for list of standard ranges

OPERATING TEMPERATURE

Media Temperature:

  • ABS: -65°F to 250°F

  • GFN and Metal: -65°F to 600°F

Ambient Temperature:

  • ABS: -65°F to 190°F

  • GFN and Metal: -65°F to 400°F

CASE CONFIGURATIONS

Materials:

  • ABS (acrylonitrile butadiene styrene)

  • Aluminum

  • Stainless Steel

  • GFN (glass-filled nylon): High-Temp Yellow Turret

Sizes, Types and Colors:

  • 2.5", 3.5", 4.5", 6", 8.5" Dial

  • Front Flange, No Flange, Rear Flange, Turret Style

  • Black, Blue, Green, Red, White, Yellow (others available)

Metal Case Finish: Powder Coated or Unpainted

Solid Front Case Design

QUALITY MATERIALS

Wetted Parts:

  • Inconel X-750

  • 300-series SS

  • Silver Braze (nickel braze available)

Connection Material: 316 SS standard (Monel available)

Window Construction:

  • Acrylic

  • Tempered Glass (increases heat tolerance)

Dial Construction:

  • Stainless Steel Material, Powder Coated Finish

  • White Background, Black Markings, Black Pointer

OTHER SPECIFICATIONS

Burst Pressure: 500% F.S. pressure or 25,000 psi

Proof Pressure (over-pressure w/o calibration shift):

  • 150% of F.S. for gauges ≤ 5,000 psi or equivalent

  • 125% of F.S. for gauges > 5,000 psi or equivalent

Internal pointer dampening (reduces pointer flutter)
