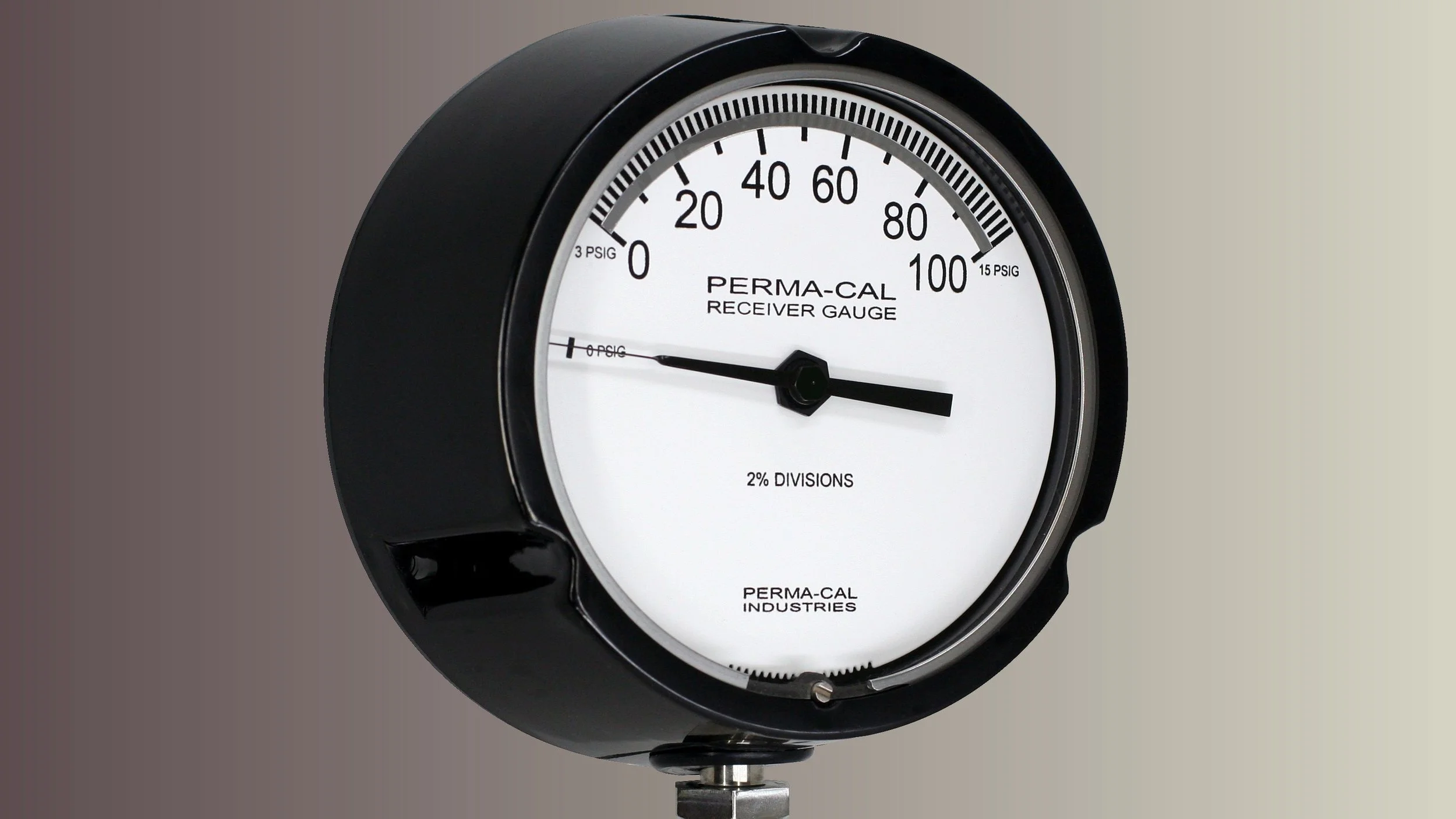

Feature - Receiver Gauge (1).JPG

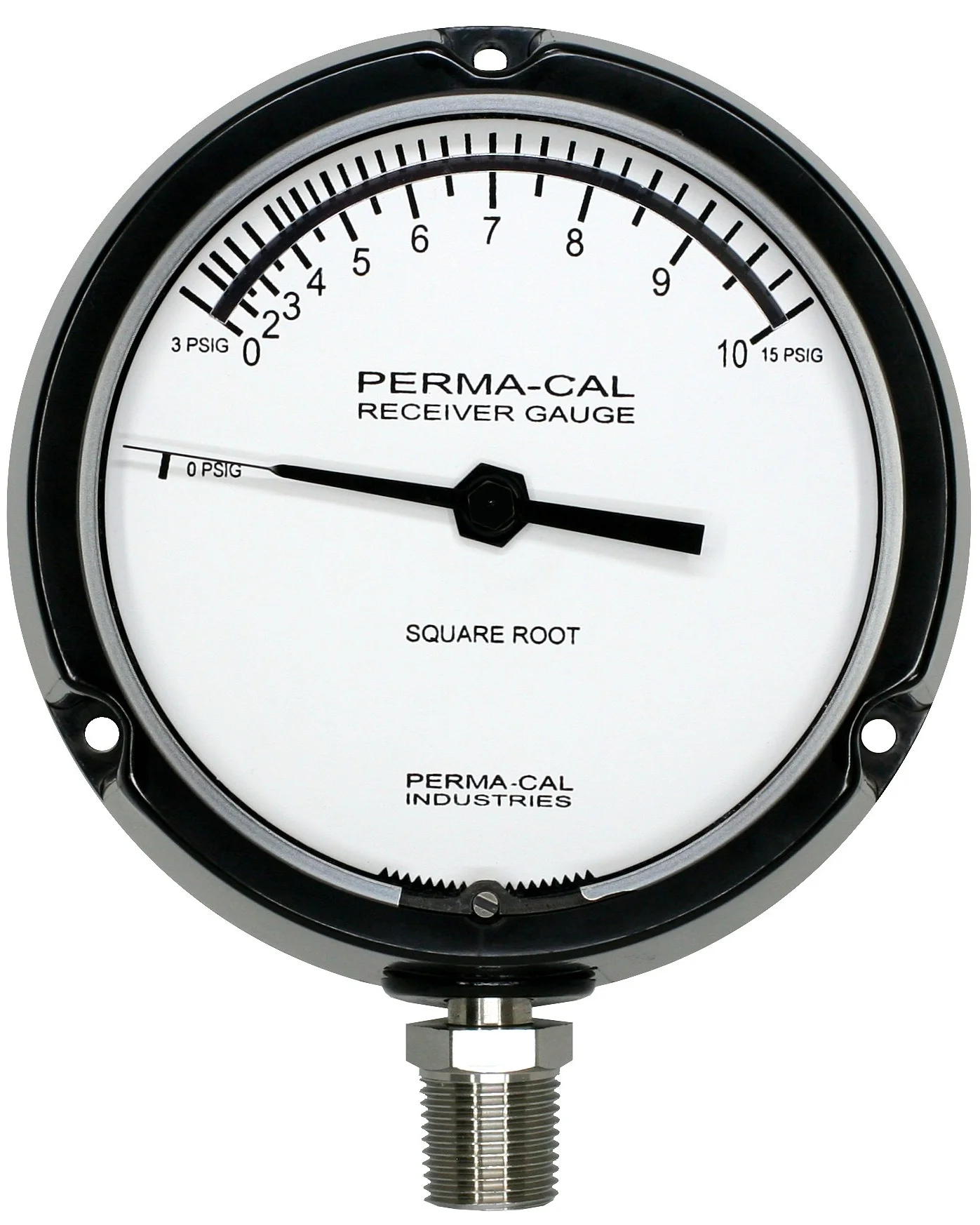

Receiver Gauges

GEARLESS, DIRECT DRIVE IN A RECEIVER GAUGE

Advantages

ONE MOVING PART

Unmatched vibration, pulsation and shock performance.

Helical Bourdon Tube = Gearless, Direct Drive = DURABILITY

No linkages, springs, gears, or liquid fill to wear, break or leak. Unique, internal pointer dampening reduces pointer flutter without the negative consequences of liquid fill.

LIFETIME LIMITED WARRANTY

Lifetime warranty that the Bourdon tube will not malfunction due to wear.

1 year from delivery or 18 months from date of manufacture against defects in materials and workmanship.

TEMPERATURE HERO

Trusted in extremes from -65°F up to 600°F media. Accuracy is 25% less affected by temperature fluctuations.

Inconel Elastic Element = Low Coefficient of Thermal Expansion

Inconel in combination with a low internal volume means that the impact of temperature on accuracy is significantly less than competitors using a Stainless Steel Bourdon Tube. High-Temp solutions available which bring operating temperatures up to 400°F Ambient / 600°F Media.

OOPS! PROOF

Proof Pressure (over-pressure) of 150% F.S. exceeds industry standards.

Survives the day to day beatings of an industrial environment. Also, where vacuum can often damage a C-tube gauge, Direct Drive is unaffected.

AEROSPACE QUALITY | MILITARY TRUSTED

Direct Drive is demanded on critical applications.

The same military grade Direct Drive technology used in our Aeropsace and Military designs, is used in our industrial gauges for commercial applications. Ideal for land, air, sea, and space.

The U.S. Military recognizes the durability advantages Direct Drive provides and requires it on their most demanding applications.

MINI-SEAL COMPATIBILITY

Requires 85% less fill fluid than the competition. Accuracy is 50% less affected by temperatures above 68°F (20°C)

Low volume design enables performance on mini diaphragm seals. This can provide significant performance and cost advantages vs. competitors.

USA PARTS, USA MADE, USA OWNED

Manufactured in Minden, NV using only American made parts. Manufacturing processes not completed in house are outsourced to support local small businesses.


Receiver Gauge Specs



TYPICAL APPLICATIONS

For use with pneumatic transmission of process variables. Receiver Gauges provide indication of changes in pressure, temperature, flow or other parameters that can be transmitted by proportional variations in air pressure.

ACCURACY

  • ±0.5% F.S. at M.S. / ±1.0% F.S.

For details see accuracy specs page

RANGE AVAILABILITY

  • 3 - 15 psi

  • 0 - 10 sq. rt.

  • 0 - 100 %

Customization available (range, units, logo, etc.)

OPERATING TEMPERATURE

Media Temperature:

  • ABS: -65°F to 250°F

  • GFN and Metal: -65°F to 600°F

Ambient Temperature:

  • ABS: -65°F to 190°F

  • GFN and Metal: -65°F to 400°F

OTHER SPECIFICATIONS

Burst Pressure: 500% F.S. pressure

Proof Pressure (over-pressure w/o calibration shift):

  • 150% of F.S. for gauges ≤ 5,000 psi or equivalent

  • 125% of F.S. for gauges > 5,000 psi or equivalent

Internal pointer dampening (reduces pointer flutter)

CASE CONFIGURATIONS

Materials:

  • ABS (acrylonitrile butadiene styrene)

  • Aluminum

  • Stainless Steel

  • GFN (glass-filled nylon): High-Temp Yellow Turret

Sizes, Types and Colors:

  • 2.5", 3.5", 4.5", 6", 8.5" Dial

  • Front Flange, No Flange, Rear Flange, Turret Style

  • Black, Blue, Green, Red, White, Yellow (others available)

Metal Case Finish: Powder Coated or Unpainted

Solid Front Case Design

QUALITY MATERIALS

Wetted Parts:

  • Inconel X-750

  • 300-series SS

  • Silver Braze (nickel braze available)

Connection Material:

Window Construction:

  • Acrylic

  • Tempered Glass (increases heat tolerance)

Dial Construction:

  • Stainless Steel Material, Powder Coated Finish

  • White Background, Black Markings, Black Pointer
